Wheels Manufacturing Extractor Kit | Essential – Removal Tool Set For Bottom Brackets – EX0003

The Bottom Bracket Extractor Essential Kit is an indispensable tool for the professional bicycle workshop. The tool sets of the Essential series contain everything it takes to to get a specific job done correctly.

The EX0003 tool set can be used to remove sealed bearings with an inner diameter of 22 mm (GXP), 24 mm, 29 mm (DUB) and 30 mm. The included extractors attach to the inner ring of the bearing and allow it to be pulled out of the bottom bracket.

After inserting the extractor into the bearing, one side is tightened with a matching wrench. In the process, the collet expands to grip the inside of the bearing. Finally, the extractor and the bearing must be tapped out together with a punch and hammer.

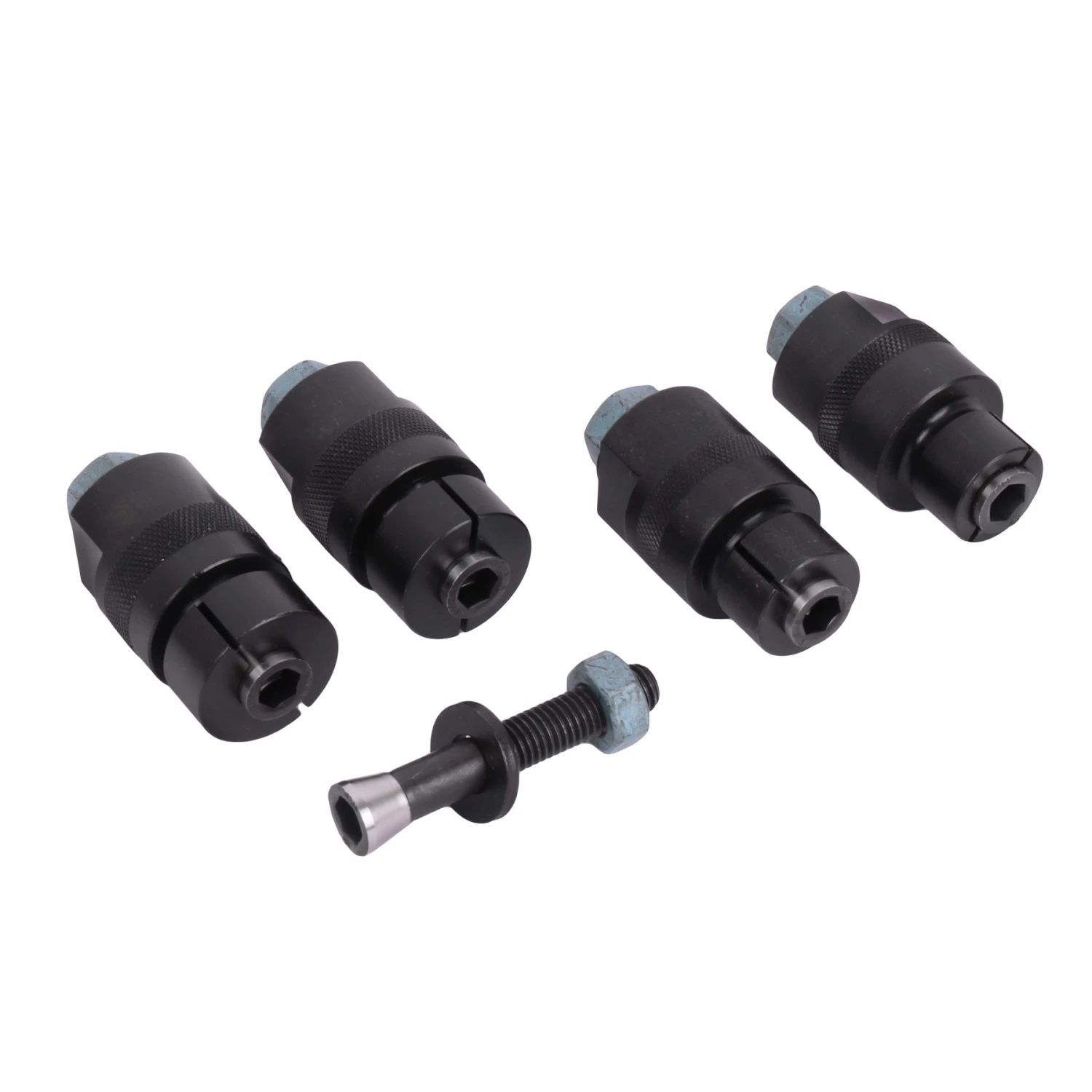

4 extractors: 22 mm (GXP), 24 x 37 mm, 29 mm (DUB), 30 mm (6806)

1 replacement bolt set



All extractors are size specific. If the removal tool is smaller than the bearing, it is recommended to use a washer between the extractor and the bearing to achieve the tightest fit possible before tightening the bolt.
