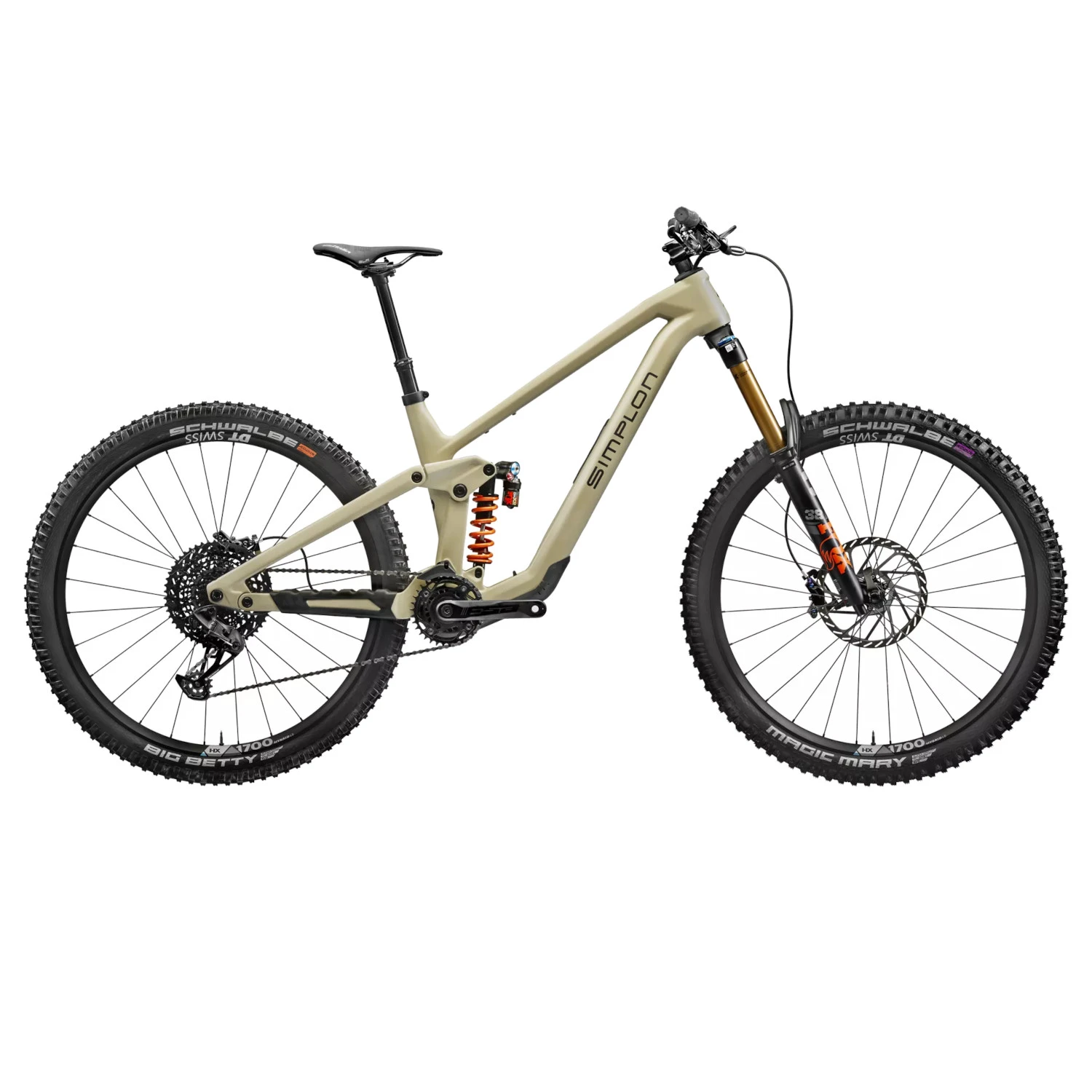

Simplon RAPCON PMAX TQ – GX1 Eagle AXS – Carbon Electric Mountain Bike – 2023 – Sand Matt / Black Matt

Quiet, light, natural.

With the Rapcon Pmax TQ you can easily master any trail. The compact HPR50 drive unit from TQ serves as a natural support on the way to the summit victory. The whisper-quiet and lightweight motor is virtually silent and contributes to the low overall weight of the e-mountain bike. The result: a natural, agile and lively riding experience. The slim bike look is reinforced by the extremely thin down tube. You could easily forget that this is an E-MTB. But at the latest when going uphill, the drive unit turns out to be a welcome uphill assistant for demanding terrain.

Highlights of the Simplon Rapcon PMAX TQ – GX1 Eagle AXS – Carbon Electric Mountain Bike – 2023

• The super-light carbon frame makes E-MTB dreams come true.
• Lightning-fast shifting with the wireless GX Eagle AXS 12-speed shifting from SRAM.
• RockShox Lyrik 29 Select+ suspension fork and Rockshox Deluxe Select+ with 150mm travel each.
• Maximum stiffness is made possible by a permanently integrated 360 watt-hour battery.
• The XI geometry ensures that the chainstays grow with the frame size. This results in perfect wheel load distribution as well as optimal smoothness for maximum riding safety.
• TQ-HPR50 drive unit for natural support with 50 Nm and high torque density of 82 Nm/dm³.
• Important data such as the battery status, riding mode or the available range are shown on the high-quality display, which is attractively integrated into the frame.
• The special cable routing in the down tube creates a sleek look, and the Smart Headset ensures a tidy design.
• The compact TQ motor weighs just 1,850 g.

Technologies of the Simplon Rapcon PMAX TQ

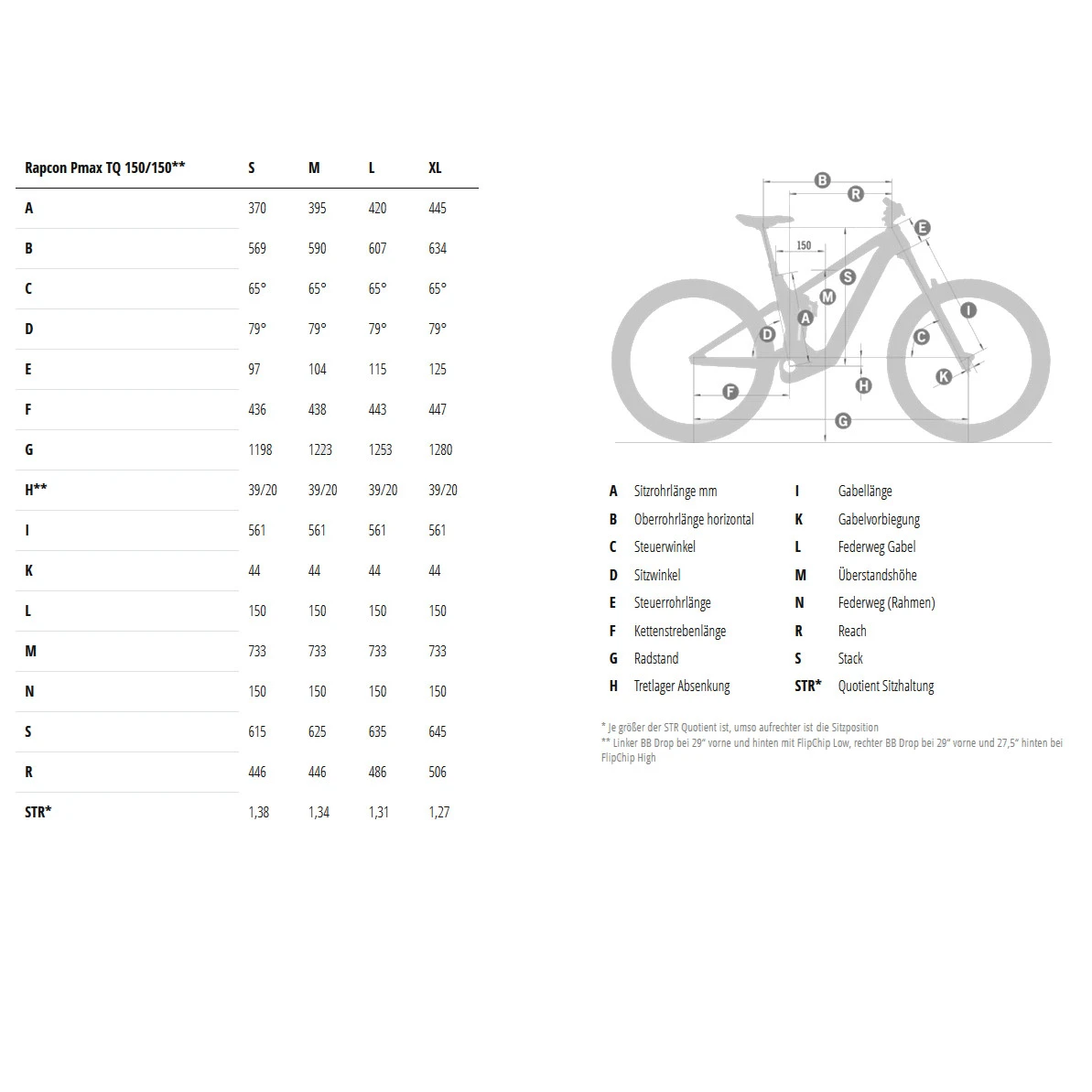

“Cross Interference Geometry” ensures equal wheel load distribution for different frame sizes. The length of the chainstay increases with larger frames and causes dadruch approximately equal pressure on the front wheel, whether size S or XL. In conventional geometries, the rear stay length always remains constant, whereby especially riders with large frames get less pressure on the front wheel, which primarily worsens the traction.

Cables and cables run from the handlebars through a special headset into the inside of the frame. The Smart Headset serves a tidy appearance and the protection of the cables.

A special design limits the steering angle and prevents collisions between handlebars and top tube -> frame protection in case of fall and transport.

An extremely impact-resistant housing made of various materials (aluminum, ABS, rubber) effectively protects the motor unit from touchdown and stone impact. And thus guarantees the safe function in the off-road area. >> Extended protection of the engine unit
