MountainBIKE 11/2022 Test Winner! (Verdict: Outstanding!)

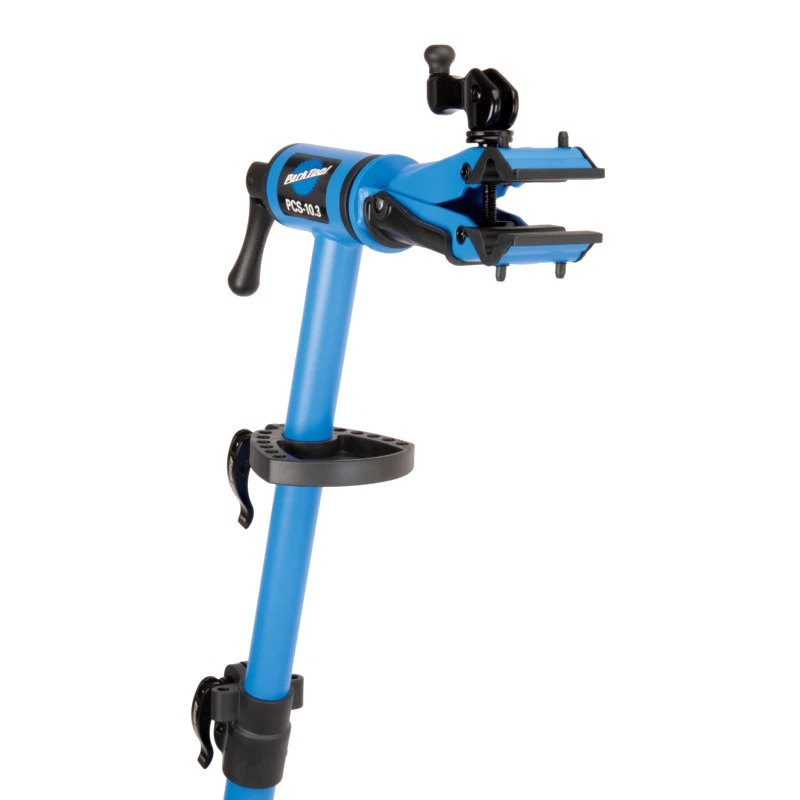

A fully featured bike work stand designed and built for the home mechanic. The PCS-10.3 features Park Tool’s proven cam-operated, micro-adjustable clamp for quick, one-handed entry and exit, and a quick-release height adjustment lever for easy, secure adjustment. With an 18″ (460 mm) height adjustment range and 360-degree clamp rotation, all parts of the bike are within reach of any mechanic, sitting or standing.
Â
Features of the Park Tool PCS-10.3 Assembly Stand
- Durable, textured powder coat finish
- Integrated, height-adjustable parts tray
- Maximum weight capacity*: 80 lbs. (36 kg)

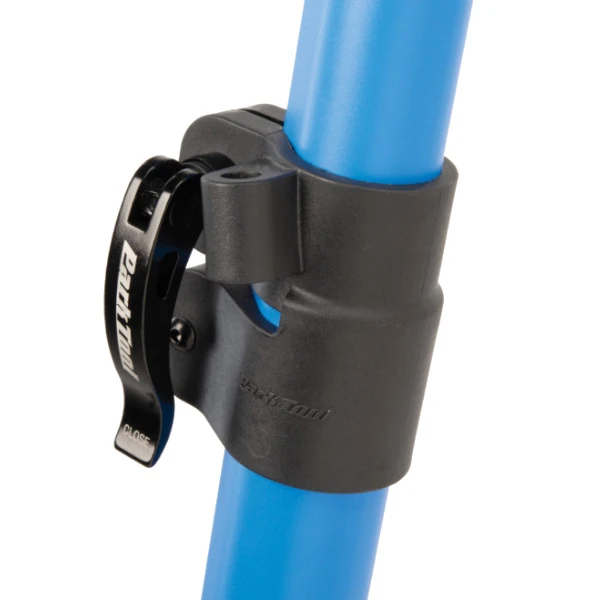

- Height adjustable from 39″ to 57″ (990-1450mm) with quick release lever

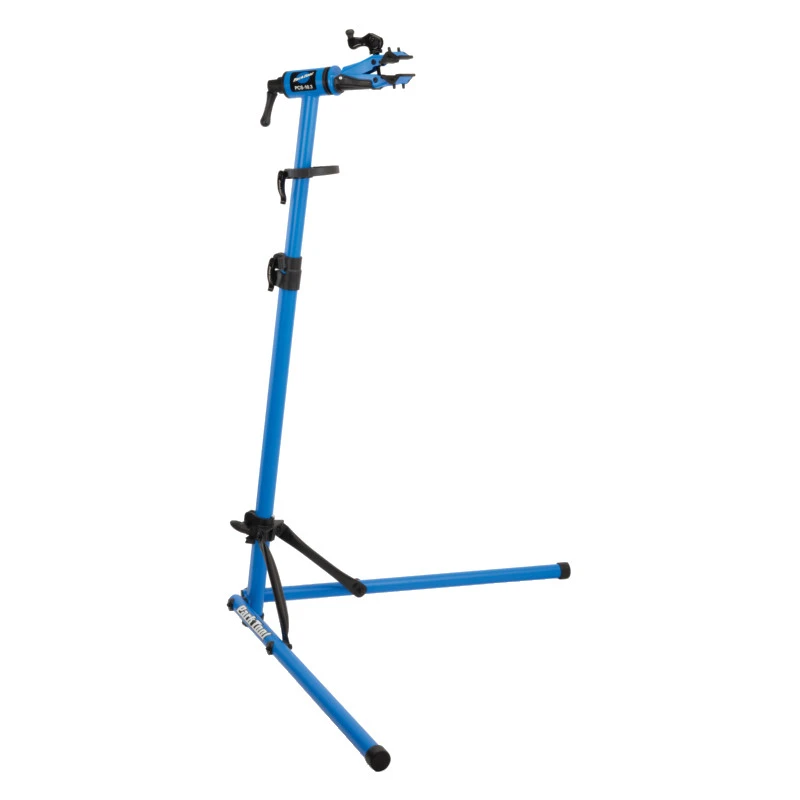

- When open, forms a triangle of 920 x 920 x 1210mm (36″ x 36″ x 48″)

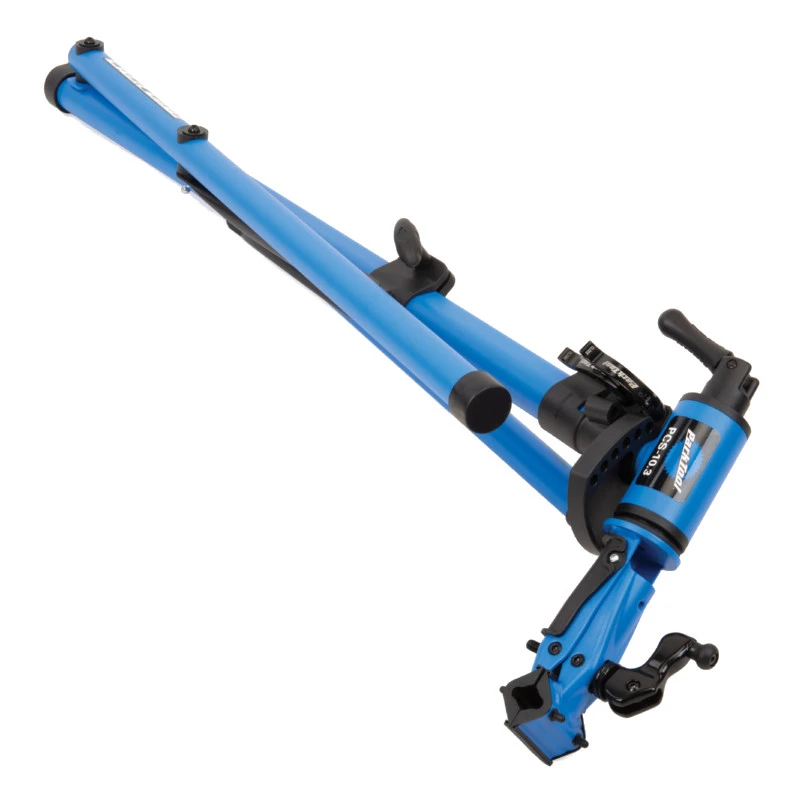

- Folds to 1140 x 370mm (45″ x 14.5″)
- Weight: 16 lbs. (7.2 kg)

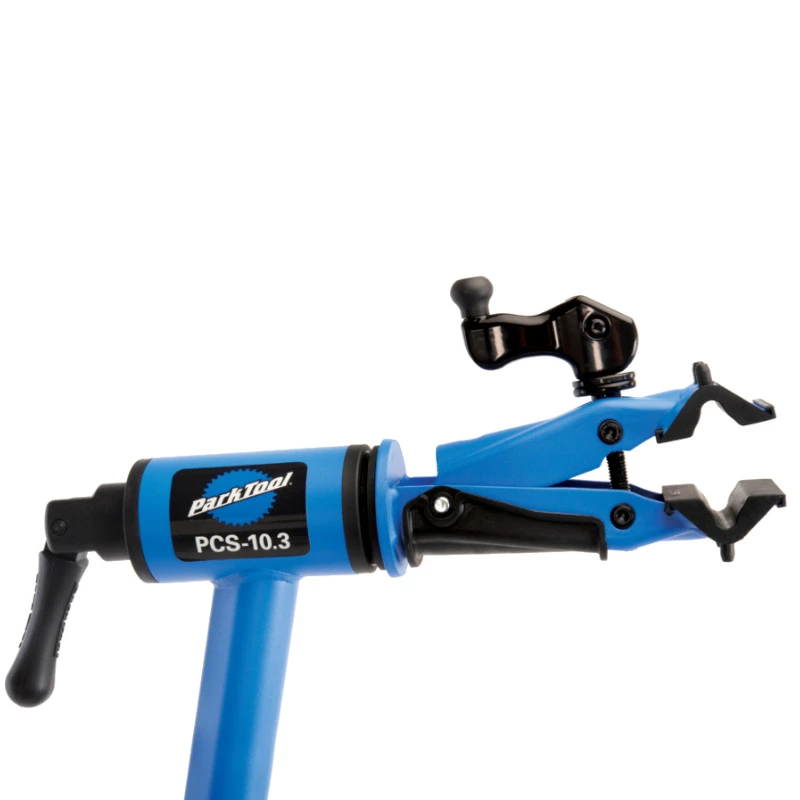

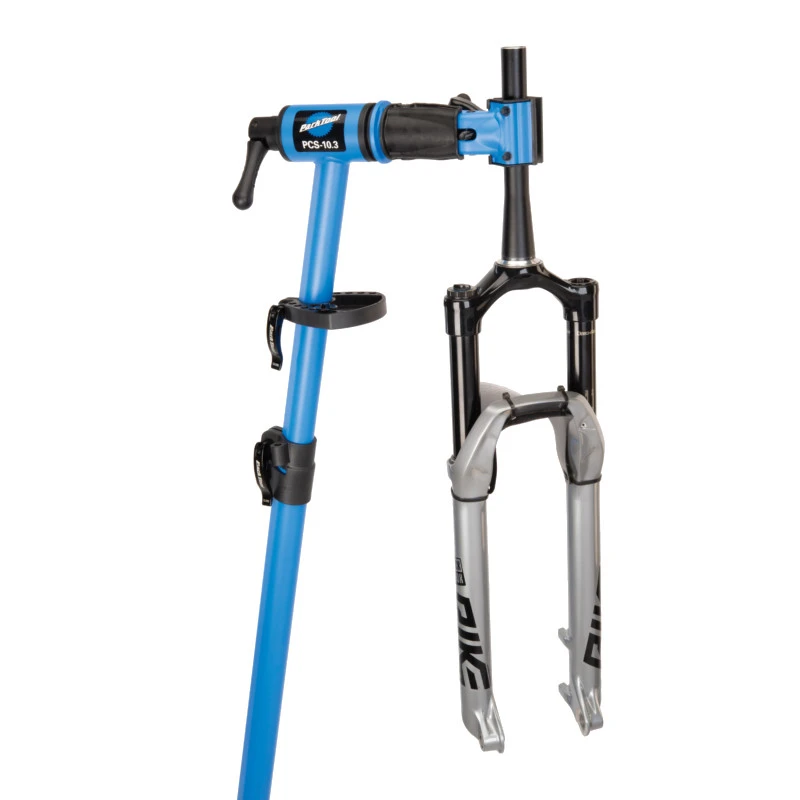

- Cam-actuated, micro-adjustable clamp fits 7/8 to 3 inch (22-76 mm) diameter tubes and seatposts of any shape or material, including aero posts and dropper posts.
- Narrow jaws (2.7 inches/70 mm) fit in tight spaces or on short seat posts.

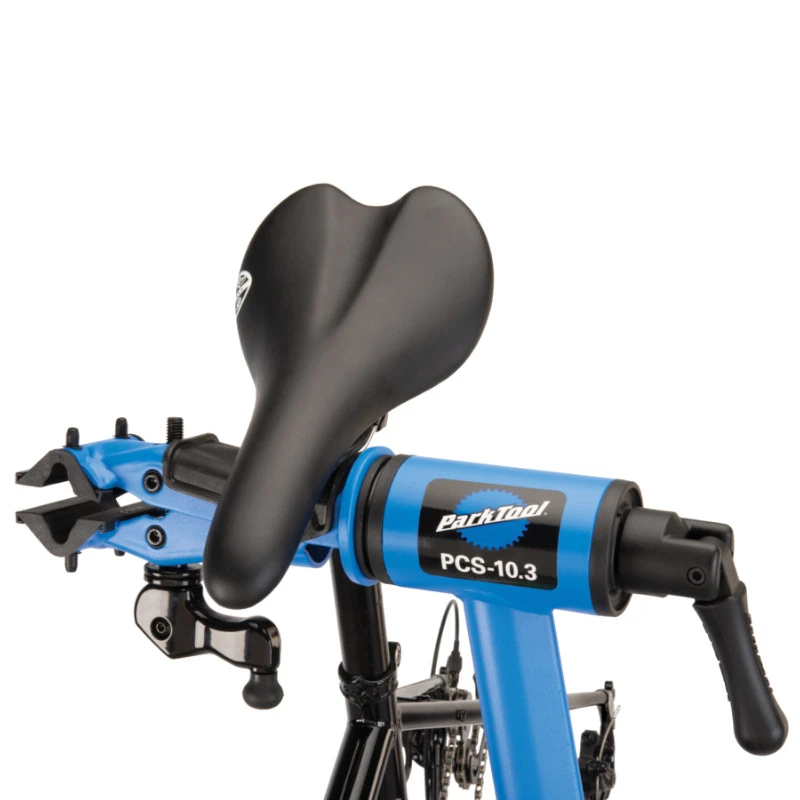

- Rubber saddle pad allows you to hang your bike from the saddle for quick adjustment or storage.
Â
Setup and Usage of the Park Tool PCS-10.3 Repair Stand
Â
Â
Â
Details of the Park Tool PCS-10.3 Repair Stand

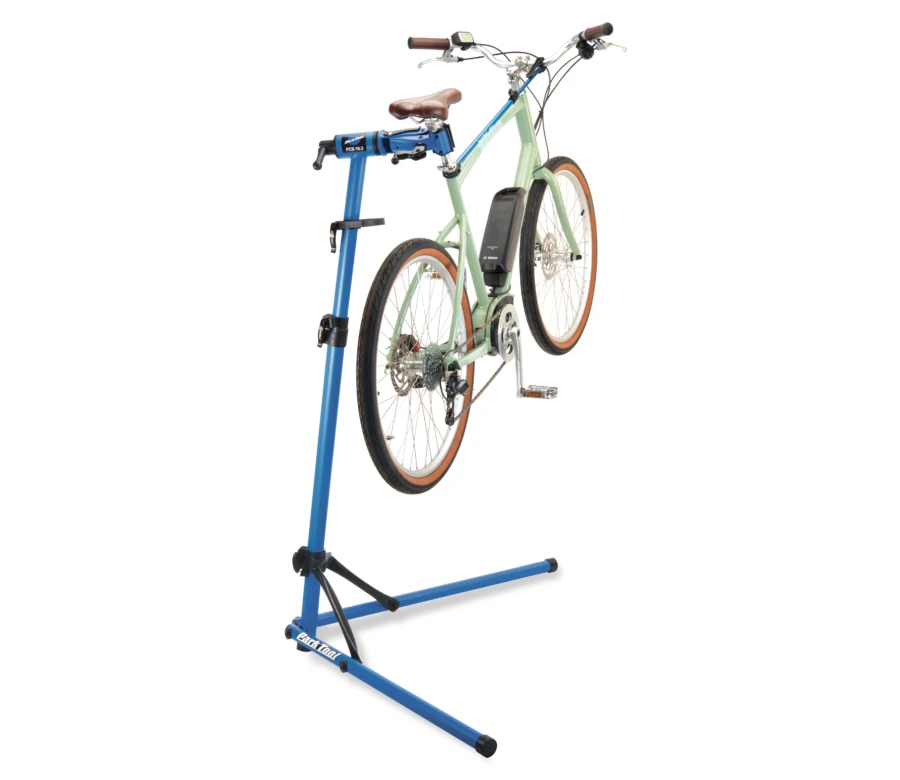

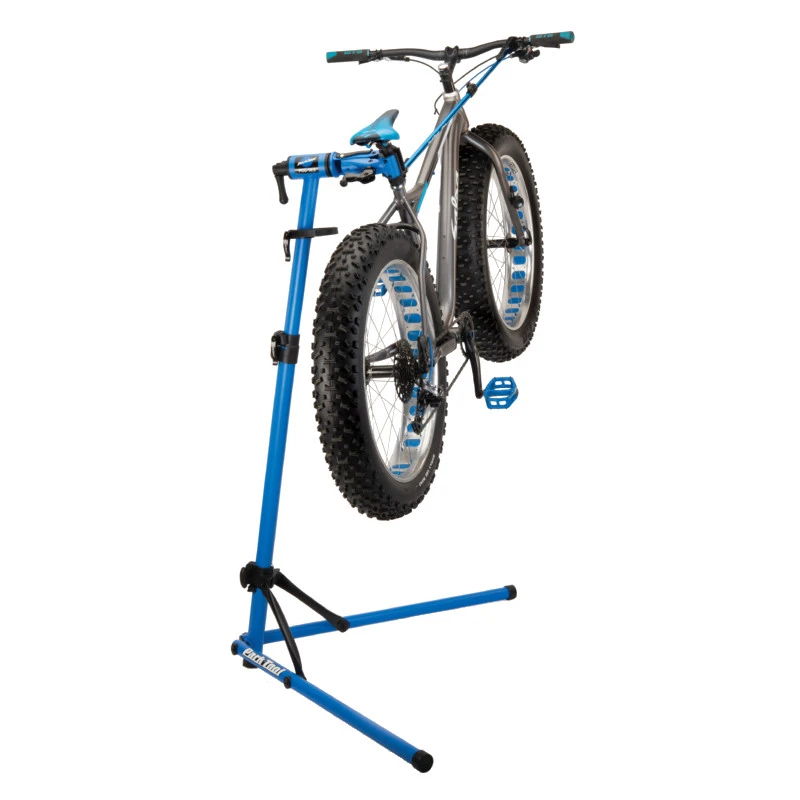

The stand’s all-steel construction with teardrop-shaped tubing provides maximum rigidity and stability, with tubular support braces, a locking support bracket and improved internals for added reliability. The PCS-10.3 can support up to 80 lbs. (36 kg). (36 kg), allowing compatibility with virtually all pedal-drive two-wheeled bicycles, including fatbikes and most e-bikes.

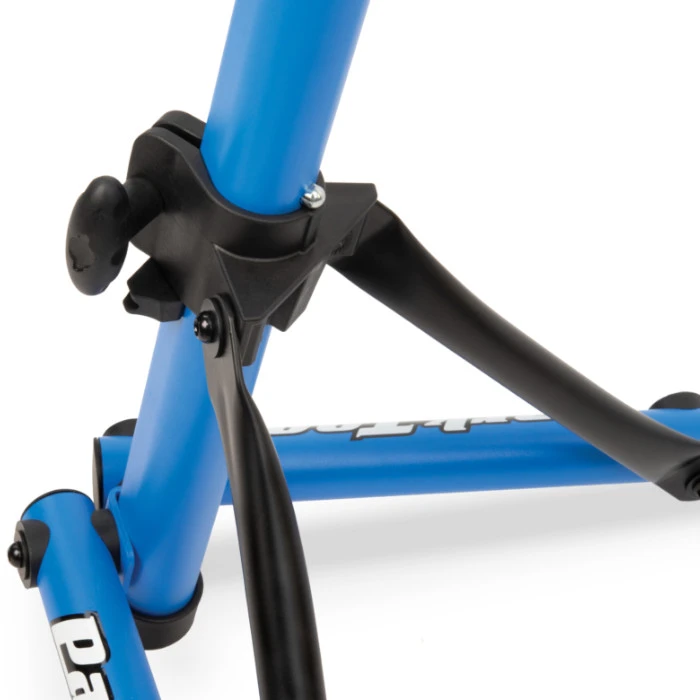

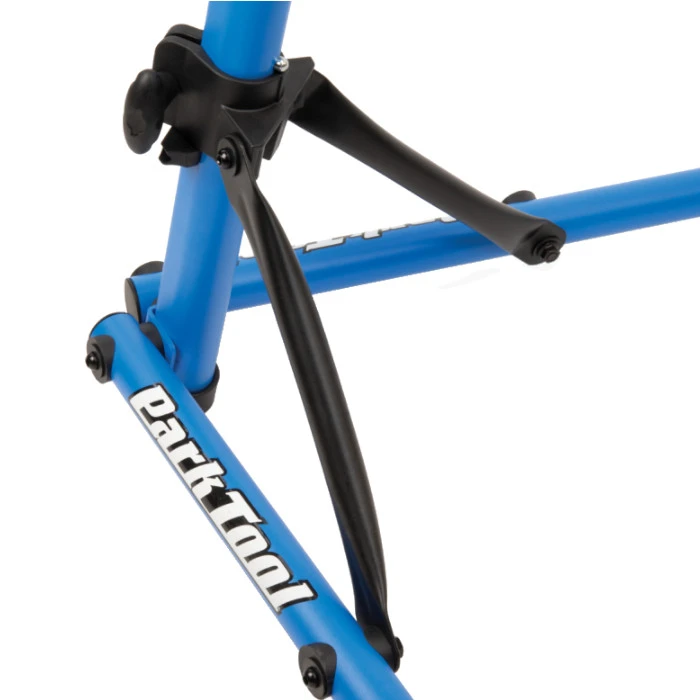

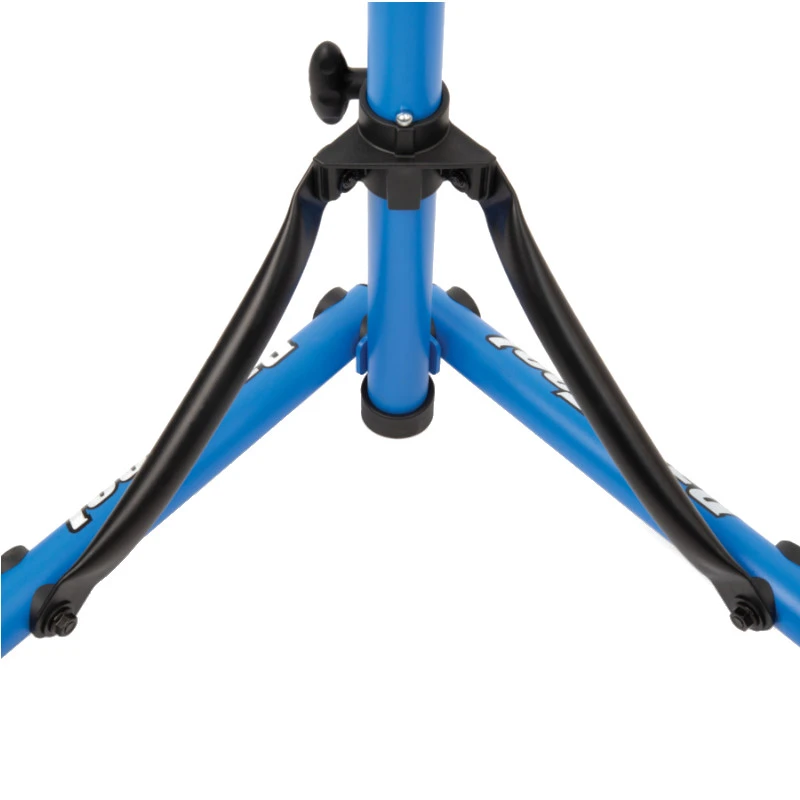

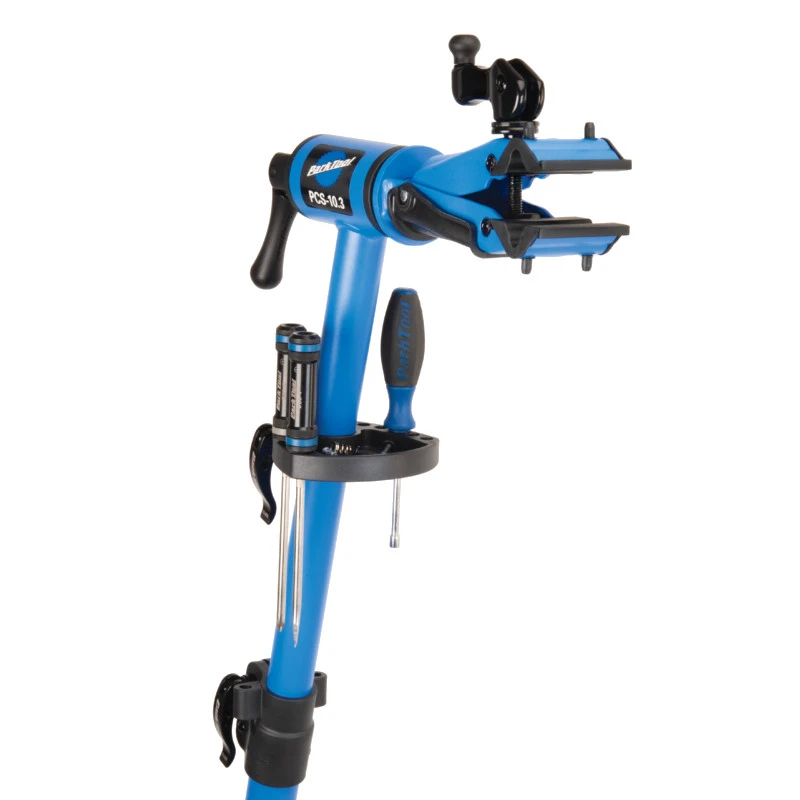

The PCS-10.3 features an integrated, height-adjustable parts tray and accessory ports for the Park Tool #106 Work Tray or PTH-1 Paper Towel Holder (both sold separately), so your tools and small parts are always within reach. For storage and transport, the PCS-10.3 folds up quickly. The smooth leg support system pulls both legs up in one easy motion.
The PCS-10.3 is the perfect way to upgrade your home workshop – a stable way to hold almost any bike off the ground for adjustments, cleaning and repairs.
