Orbea RISE M10 Electric Mountain Bike – 2023 – Chameleon Goblin Green (gloss/matt)





Rise up and rise beyond!

A machine designed to give you even more adventure on the trails and let you live in the moment. The Rise brings you that special feeling where less “E” means more “bike”. Whether you want to ride longer distances, reach epic places, simply be more efficient on the road or experience great adventures even more often, the Rise exceeds your expectations and marks a new mountain bike standard.

Highlights of the Orbea Rise M10 MTB E-Bike

• OMR lightweight carbon frame
• Fox shock and Fox 36 Float fork with 150mm travel
• 1×12-speed Shimano gears
• Dropper post with remote control
• Powerful Shimano hydraulic disc brakes
• Newly developed Shimano EP8-RS motor with max 85Nm torque (support up to 25 km/h)
• Orbea RS Range Extender (optional) adds 252Wh to the battery capacity

Details of the Orbea Rise M10 MTB E-Bike

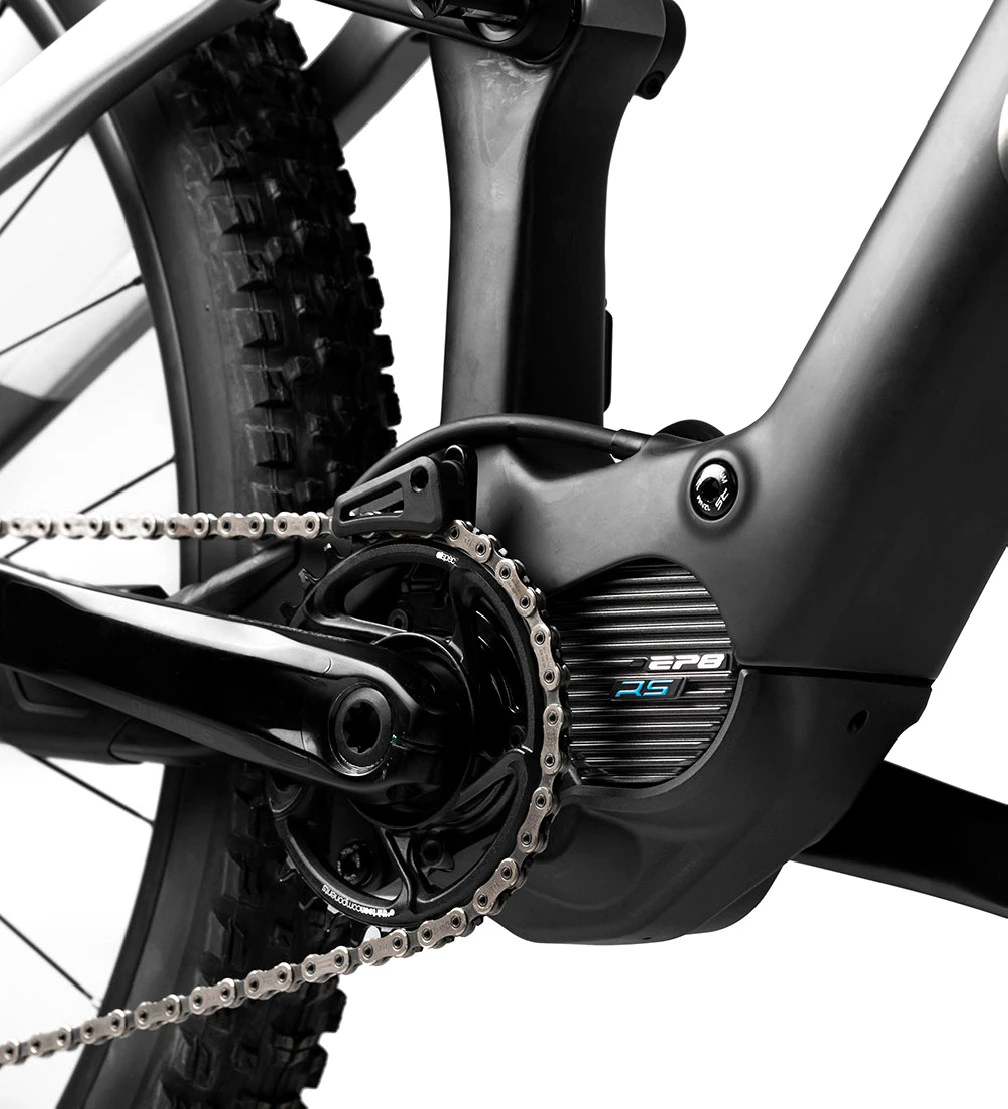

• the EP8 RS system delivers its power very smoothly and with first-class responsiveness. The custom electronics are tuned so that the motor delivers its power optimally at a cadence between 75 and 95 rpm.
• – OMR frames combine high-modulus, high-strength carbon fibers with a standard layup to optimize the stiffness-to-weight ratio. The use of the so-called bladder molding process with EPS molds and polyurethane (PU) inserts on the head tube and bottom bracket avoids wrinkles and bumps in critical areas of the frame. At the same time, carbon can be saved without compromising the strength of the frame.
• The progressive characteristic curve, in combination with the anti-squat properties of the main pivot, allows for efficient propulsion instead of sucking energy from you.
• With a high breakaway torque, the suspension offers an active feel with great traction. When the full travel is used, such as when hitting hard on a blocky trail, the progressive spring curve keeps the bike under control.
