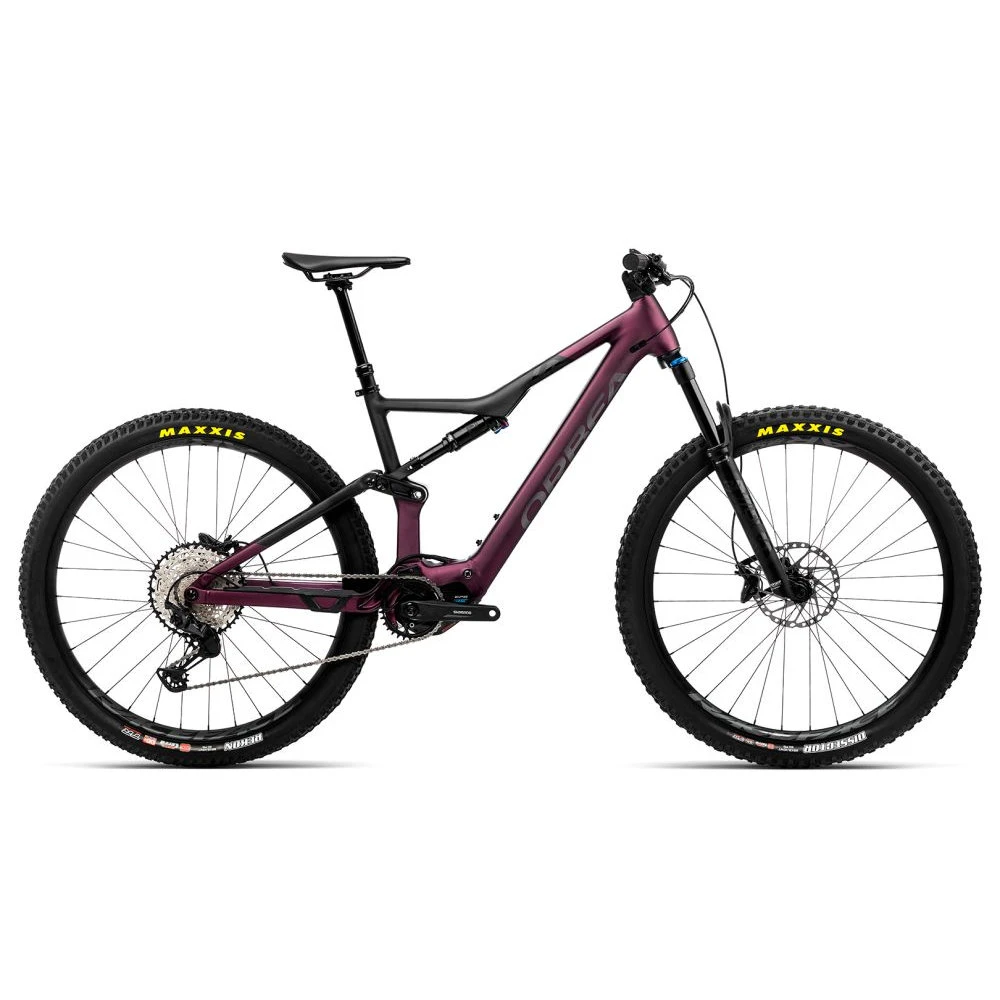

Orbea RISE H20 Electric Mountain Bike – 2023 – Metallic Mulberry – Black (matt)





Rise up and rise beyond!

A machine designed to give you even more adventure on the trails and let you live in the moment. The Rise brings you that special feeling where less “E” means more “bike”. Whether you want to ride longer distances, reach epic places, simply be more efficient on the road, or experience great adventures even more often, the Rise exceeds your expectations and marks a new mountain bike standard.

Highlights of the Orbea Rise H20 MTB E-Bike

• Hydroformed aluminium frame
• Fox shock and Fox 34 Float Performance fork with 140 mm travel
• 1×12-speed Shimano XT shifting and e*thirteen Boost crankset
• Dropper post with remote control
• Powerful hydraulic disc brakes
• Newly developed Shimano EP6-RS motor with max 85 Nm torque (support up to 25 km/h)
• Thanks to (optionally available) Orbea RS Range Extender, the battery power is extendable by 252Wh

Technologies used on the Orbea Rise H20 MTB E-Bike

• The EP6 RS system delivers its power very smoothly and with first-class response. The custom RS electronics are tuned so that a lighter bike with greater efficiency and more use of your legs increases the range of the battery by one and a half times. So the 540 watt-hour battery in the Rise compares to the 810 watt-hour battery in a conventional e-bike.

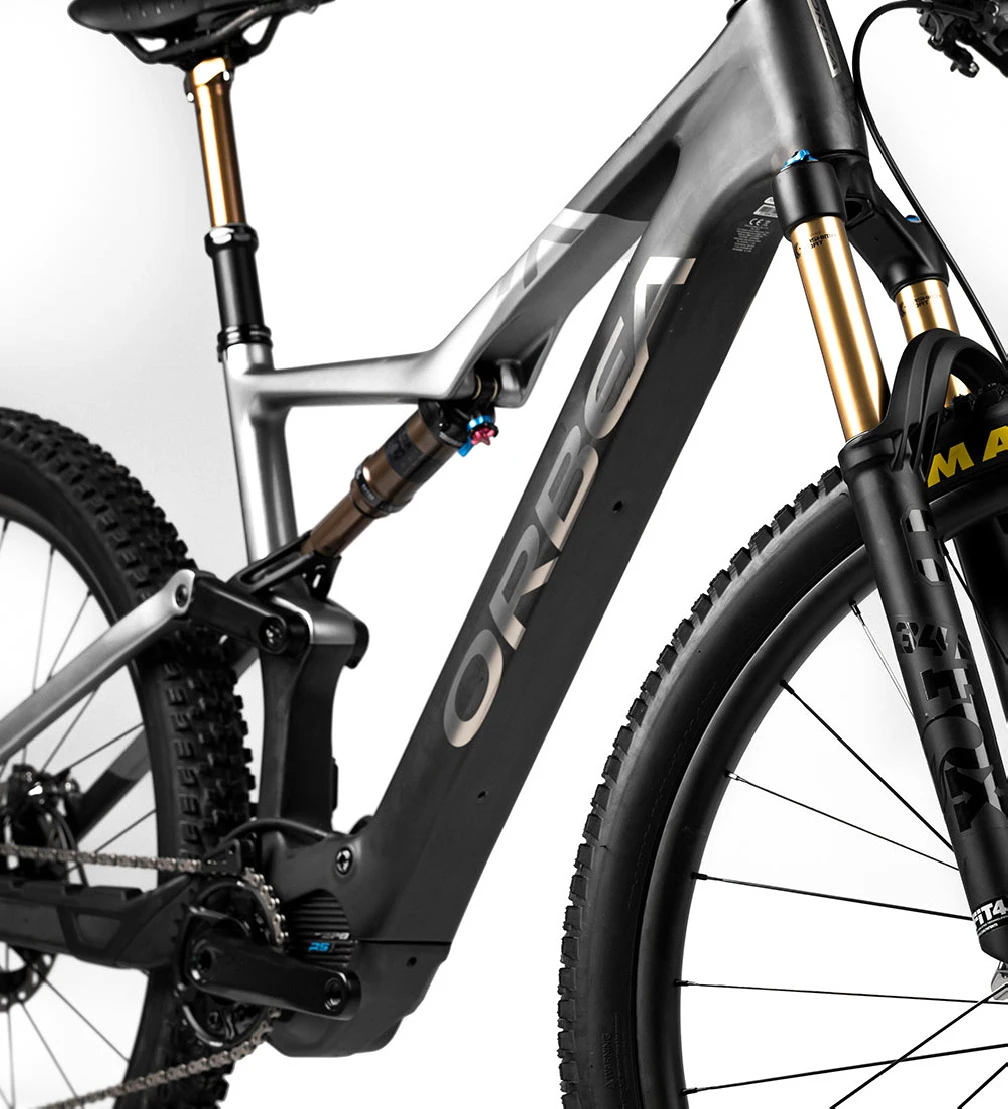

• Thanks to hydroforming and triple-butted tubes, Orbea was able to optimize the wall thicknesses to save weight while strengthening the most stressed areas. The highly polished aluminium frame can hardly be distinguished from the carbon version. In addition, the process ensures particularly fatigue-resistant weld seams.
• The progressive characteristic curve, in combination with the anti-squat properties of the main pivot, allows for efficient propulsion instead of sucking energy from you.
• With a high breakaway torque, the suspension offers an active feel with great traction. When the full travel is used, such as when hitting hard on a blocky trail, the progressive spring curve keeps the bike under control.
