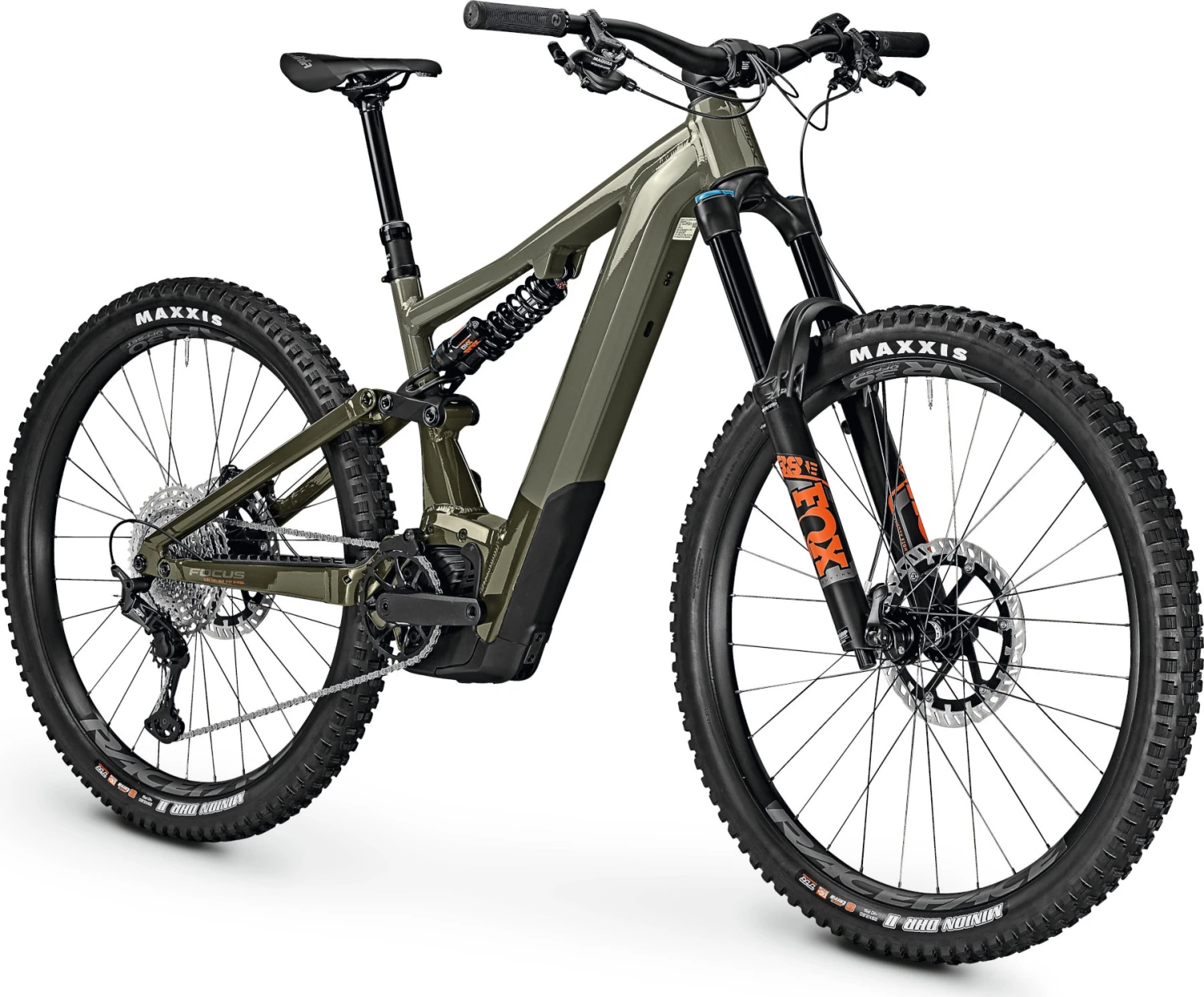

FOCUS SAM² 6.8 - 29" MTB E-Bike - 2023 - Urbangreen

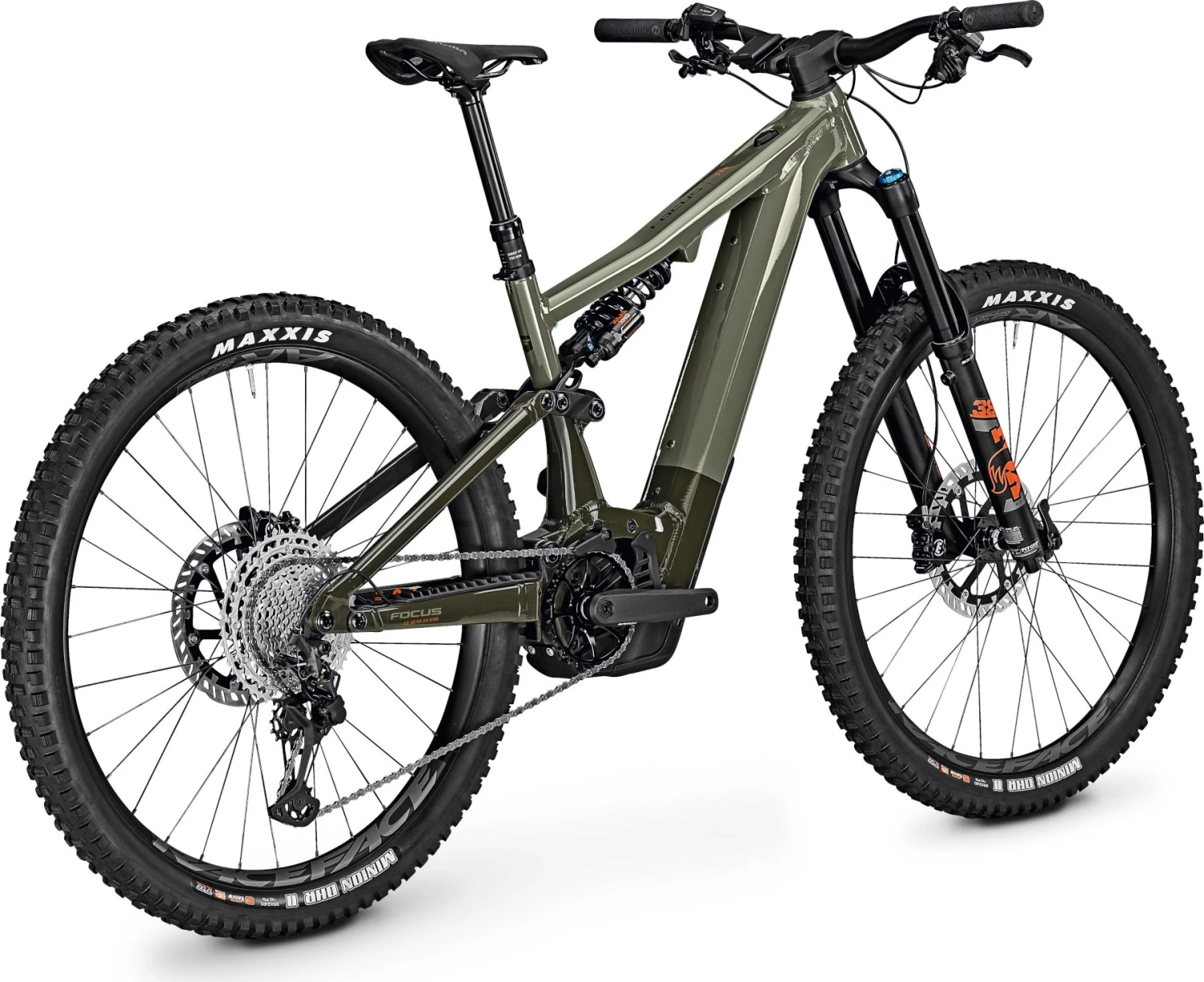

FOCUS SAM² 6.8 - 29" MTB E-Bike - 2023 - Urbangreen - Image 2

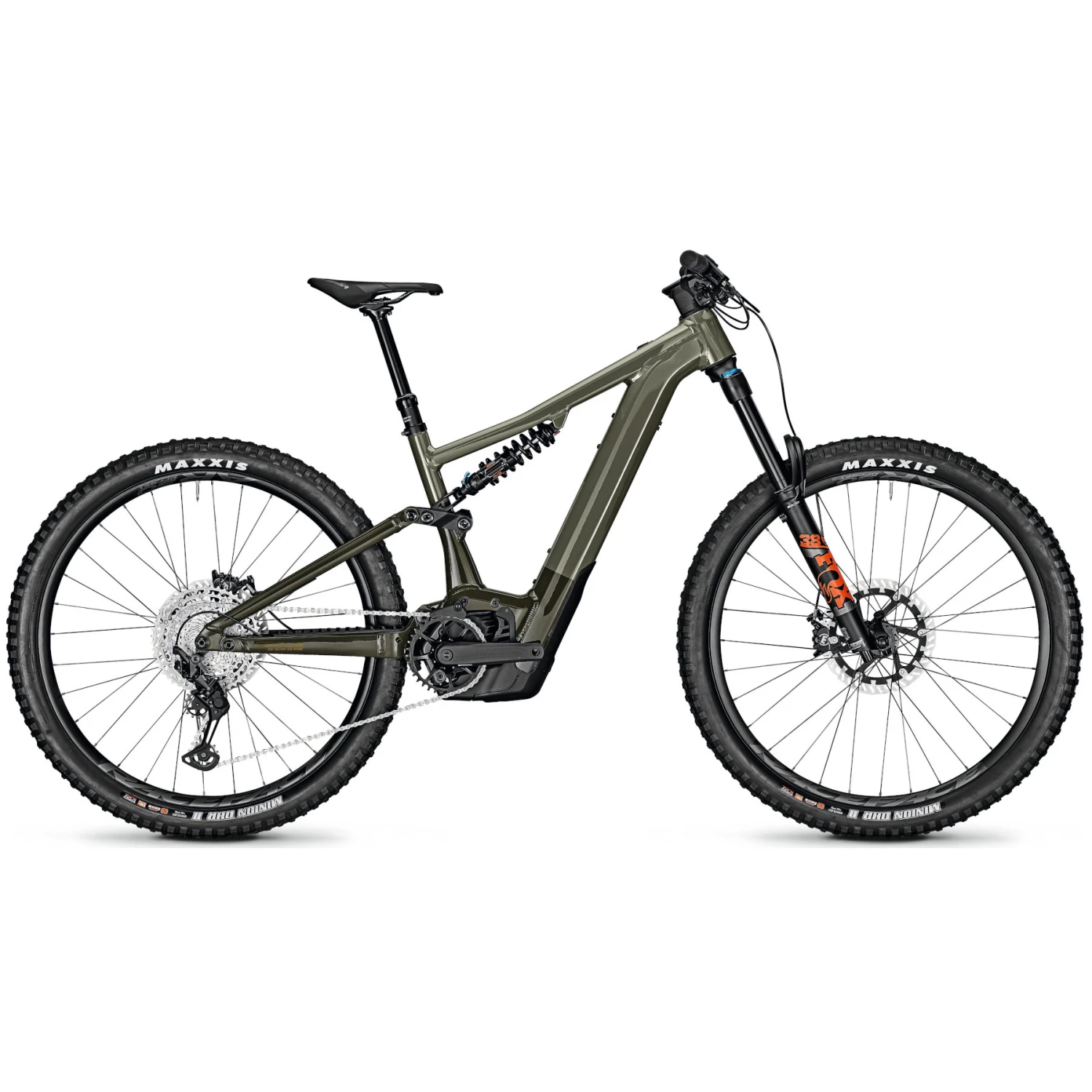

FOCUS SAM² 6.8 - 29" MTB E-Bike - 2023 - Urbangreen - Image 3

FOCUS SAM² 6.8 - 29" MTB E-Bike - 2023 - Urbangreen - Image 4

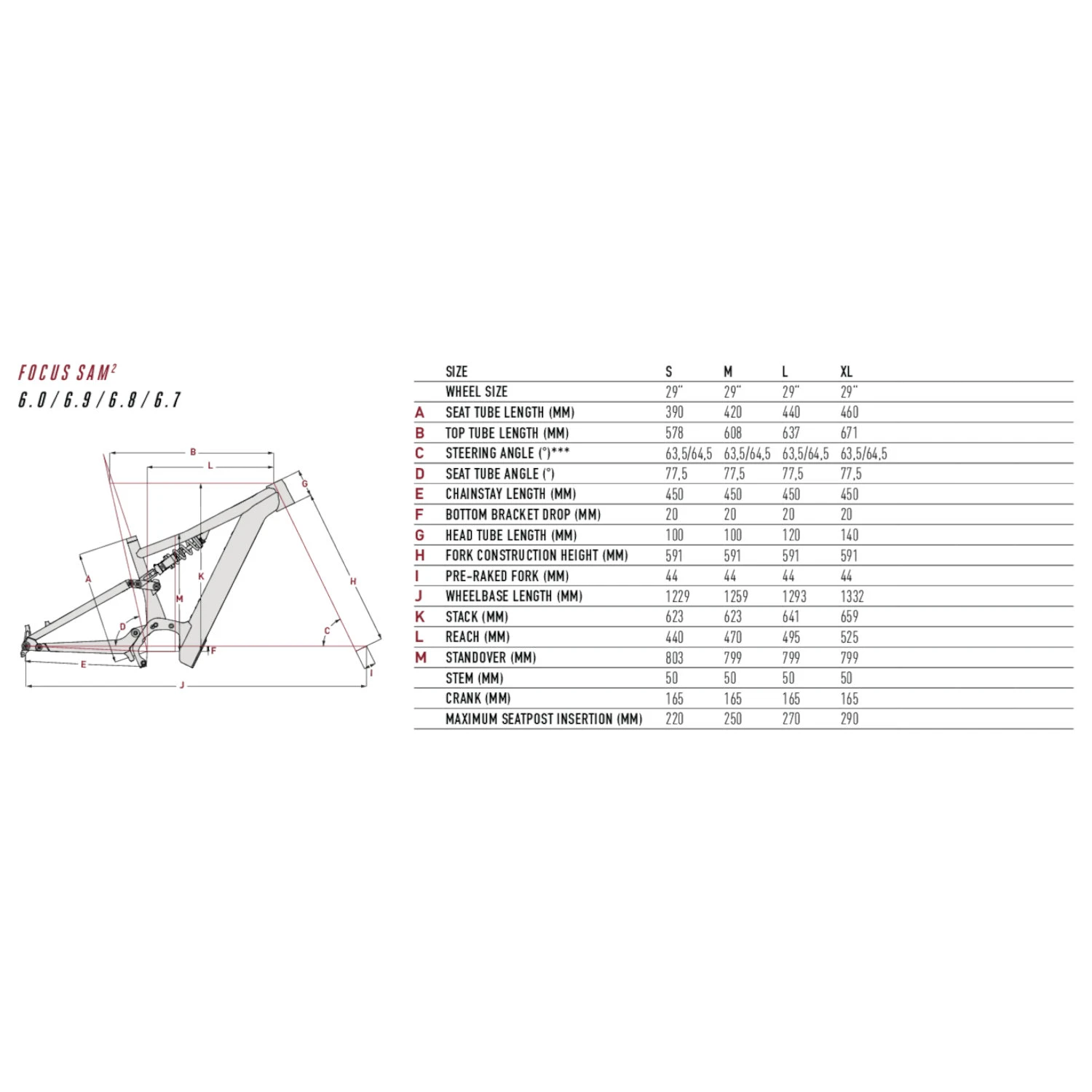

FOCUS SAM² 6.8 - 29" MTB E-Bike - 2023 - Urbangreen -Urban Volt Bike Sales geo sam 2 1367989 3

FOCUS SAM² 6.8 – 29″ MTB E-Bike – 2023 – Urbangreen

Original price was: $362.00.Current price is: $95.99.

SKU: YMLRZ 703583 Categories: Electric Mountain Bikes, Full Suspension E-Mountain Bikes Tag: FOCUS Bikes

No-Questions-Asked Returns
Fast reliable delivery options
Best price, safe shopping guarantee
Where quality meets convenience.

Designed for down

A modern, downhill-oriented geometry, 180mm travel and fast 29″ wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38mm stanchions. Additionally, the fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27.5″ wheels and super short chainstays (430mm).

The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 750 Wh battery, you can ride all your trails again and again.

The FOCUS F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that FOCUS can also guarantee the perfect mix for the e-Enduro SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.

Features of the FOCUS SAM² 6.8

7005 Hydroformed Aluminium frame
Powerful and agile Bosch Performance CX e-drive with integrated, removable 750 Wh battery
180/170 mm suspension travel with F.O.L.D. kinematics
Fully integrated C.I.S. cable routing and trail-ready Shimano Deore XT Eagle shifting
220 mm brake discs for safe braking
29″ wheels

frame	7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148×12 mm TA
frame type	Full Suspension
shifting actuation	Mechanical
E-Bike battery	Bosch PowerTube
assisted speed	max. 25 km/h
Drive Unit Manufacturer	Bosch
motor location	Mid-Mounted Motor
brake type	Disc Brake
wheel size	29" (622mm)
voltage	36V
shock	Rock Shox Super Deluxe Coil Select, 230/65 mm
dropper post	yes
travel fork	180mm
number of chainrings	1
pedals	MTB, with reflector
tires	Maxxis Minion DHR II, 2.6, 66-622
brake actuation	Hydraulic
Model year	2023
Collection	Full year
Color	Green, Olive
fork construction	Classic Suspension Fork
manufacturer item code	FO5400025
cable routing	fully integrated
Display / Control Unit	Bosch LED Remote + Kiox 300
shifting system	12-speed
battery ernergy	750Wh
Product Name	FOCUS SAM² 6.8 – 29" MTB E-Bike – 2023 – Urbangreen
cassette	Shimano Deore CS-M6100, 12-speed
Manufacturer	FOCUS Bikes
Item Code	FOU628790
activity	Cycling
gender	men
material	Aluminium
usage bikesport	E-Bike, MTB
hubs	Novatec D041, 15×110 mm, Novatec D462, 12×148 mm
spokes	Niro
rims	RaceFace AR30 Offset
chain	Shimano CN-LG50
shifter	Shimano Deore XT M8100
gear ratio	10-51
rear derailleur	Shimano Deore XT M8100
chainring ratio	36
crankset	Samox EC40 ISIS, 165 mm
brakes	Magura MT5, 220/220 mm
seat post	Post Moderne dropper post PM-214, 34.9mm
saddle	Selle Italia X3
handle bar	Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
stem	FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm
fork	FOX 38 Rhythm Float 29, Grip, E-Bike optimized, 15×110 mm, 44mm rake
headset	ACROS ZS56/ZS66, FOCUS C.I.S. Integrated
groupset	Shimano
Drive Unit Model	Bosch Performance Line CX Gen 4
