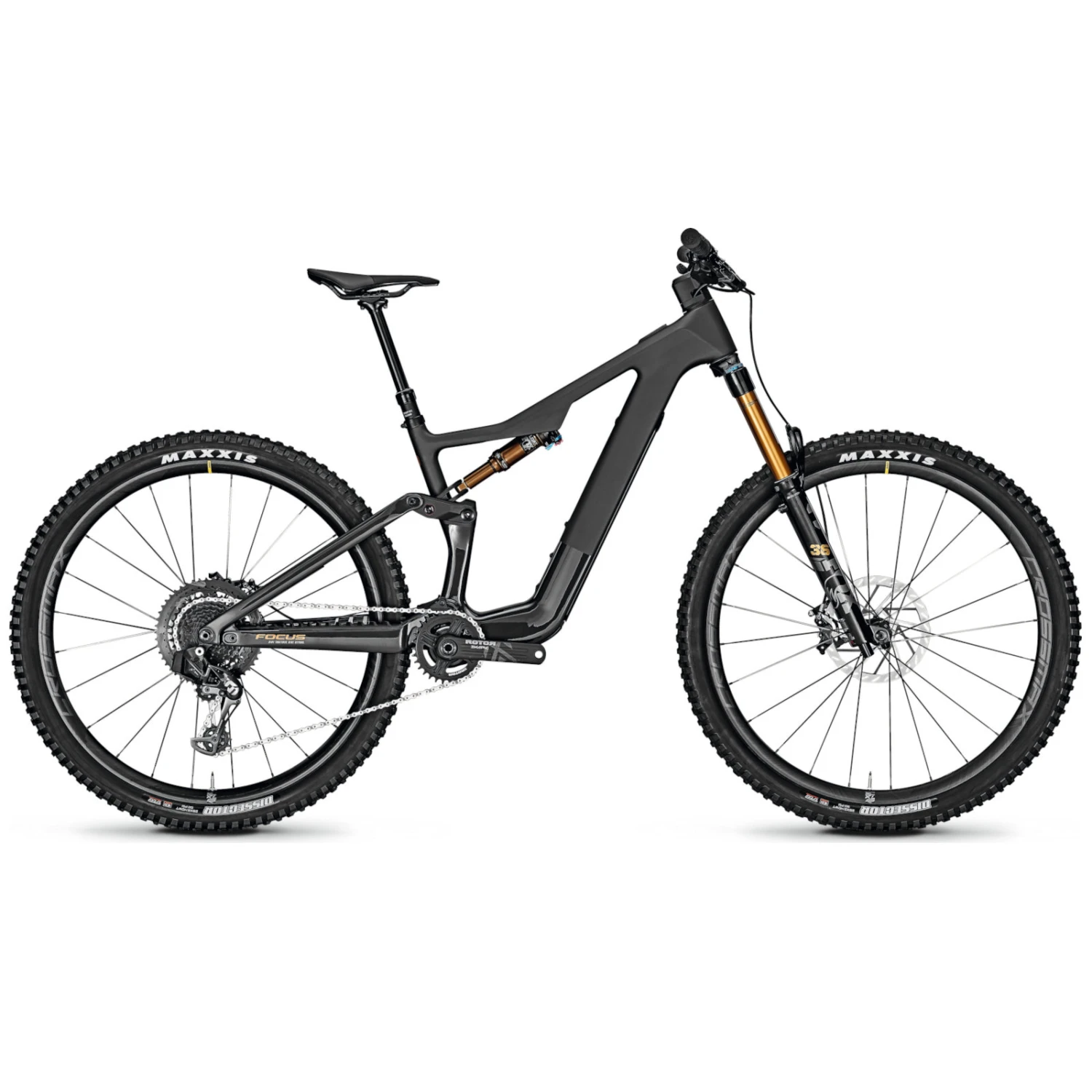

FOCUS JAM² SL 9.0 – 29″ Carbon MTB E-Bike – 2023 – Carbon Raw / Carbon





Agile and light

The JAM² SL 9.0 pushes the boundaries of E-MTB lightweight construction. The MAX carbon layup makes this full carbon frame super light without compromising on stiffness. The top tube is optimized in the most radical and minimalist way. Thanks to the partial integration of the shock, the JAM² SL 9.0 has a low standover height that gives you plenty of room to move. All adjustment elements of the damper are easy to reach despite the integration. Since the motor and battery of the JAM² SL 9.0 are fully integrated into the down tube, this E-MTB not only rides like a Pure Bike, but also looks like one.

The high-end equipment of the JAM² SL 9.0 with carbon handlebars and wheels also ensures a low weight.

Features of the FOCUS JAM² SL 9.0 Carbon MTB E-Bike

• Light e-mountain bike thanks to a lightweight carbon frame and the Fazua Ride 60 e-drive with 60 Nm and 430 Wh battery
• 160 mm FOX 36 Factory suspension fork and 150 mm FOX Float DPS Factory shock with F.O.L.D. kinematics
• Prompt SRAM X01 AXS 1×12 electronic shift
• Powerful G2 Ultimate brakes and fast Mavic Crossmax X LR 29 wheels

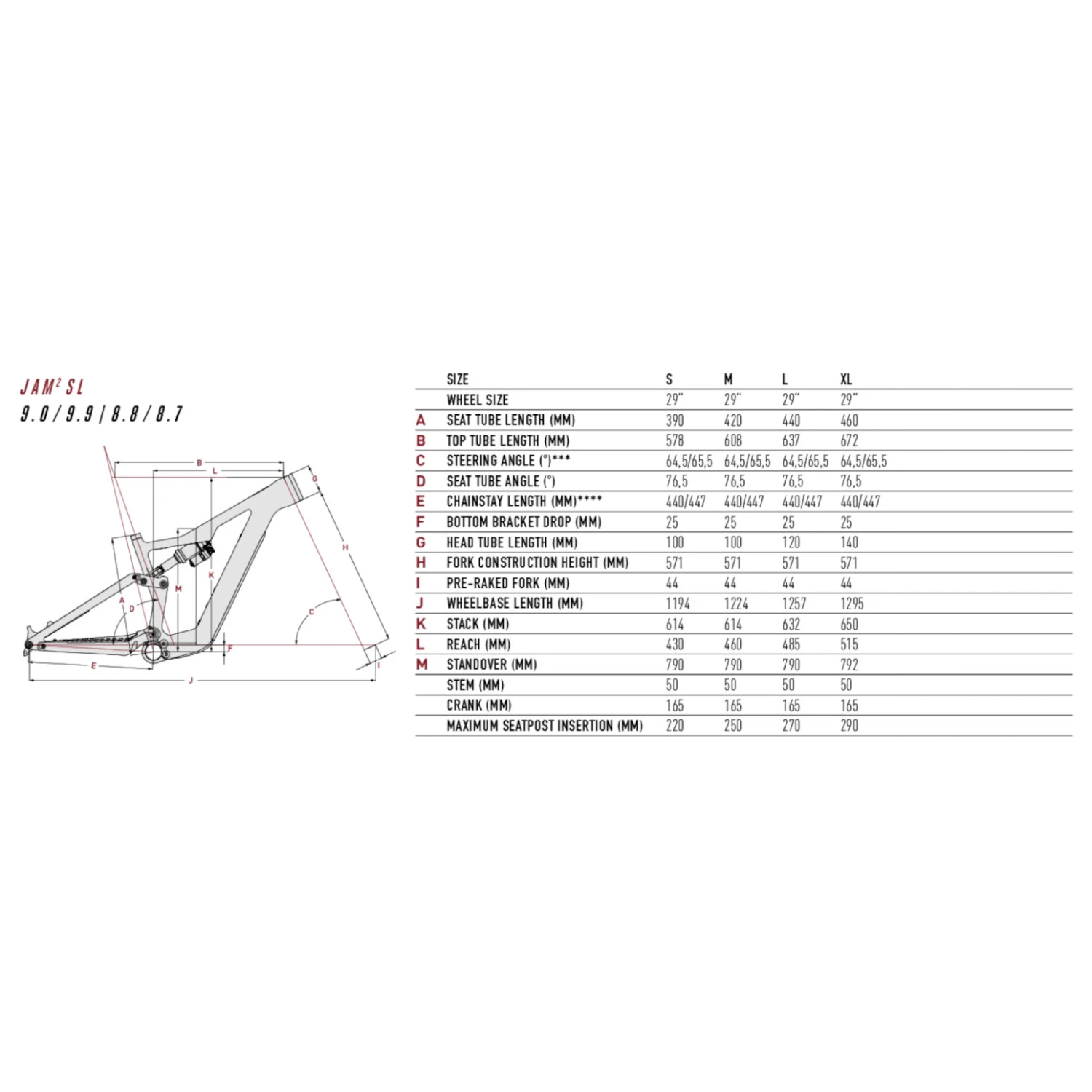

The geometry of the JAM² SL can be adjusted via two points: Steering angle and chainstay length. The steeper steering angle of 65.5° leads to a more agile handling of the bike, while the flatter position of 64.5° provides a more downhill-oriented setting. Adjusting the chainstays from 440 to 447 mm via the FLIP CHIPs changes the entire set-up of your bike. If you set the FLIP CHIPs to a long position, the JAM² SL rides more stable and facilitates steep climbs, while the short setting leads to a more agile geometry. For the JAM² SL, the F.O.L.D. (FOCUS Optimised Linkage Design) has been adapted and the number of joint parts reduced, thereby significantly saving weight. The new kinematics reduces even more the braking influences and gives you maximum control over your bike in every situation.
